CVH系列止回阀,DMIC止回阀

DMIC止回阀产品介绍：

GUIDED POPPET DESIGN AND PRECISION GROUND SURFACES FOR 10,000 PSI SERVICE, ¼" TO 2" NPT/SAE/BSPP/BSPT/6149

DMIC止回阀特点：

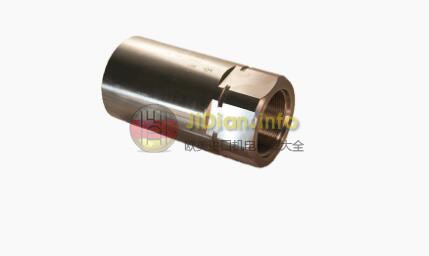

The DMIC CVH Check Valve is a quality leader in the worldwide

marketplace. Computer optimized flow passages and super heavy duty

construction results in a 10,000 PSI rated product which will provide

greatly extended service in 3,000 and 5,000 PSI applications.

• Precision ground oversize poppet landing zone for longevity, factory

tested for zero leakage - install with confidence

• Designed for 10,000 PSI maximum operating pressure in carbon

steel and 10,000 PSI in stainless steel

• Standard 5 PSI & 65 PSI cracking pressures, with rapid delivery

for 0, 15, 30, 75, and 135 PSI - call with your custom requirement

• Hybrid models with SAE Code 61 4-Bolt and Split Flange available

• Spring laid out such that it never fully packs, extending life expectancy

• One piece steel construction eliminates leakage from joints

DMIC止回阀型号：

CVH**-0250N

CVH**-0250S #4 SAE

CVH**-0250B ¼" BSPP

CVH**-0250IU 12mm ISO6149

CVH**-0375N

CVH**-0375S #6 SAE

CVH**-0375B 3

CVH**-0375IU 16mm ISO6149

CVH**-0500N

CVH**-0500S #8 SAE

CVH**-0500B ½" BSPP

CVH**-0500IU 18mm ISO6149

CVH**-0750N

CVH**-0750S #12 SAE

CVH**-0750B ¾" BSPP

CVH**-0750IU 22mm ISO6149

CVH**-1000N

CVH**-1000S #16 SAE

CVH**-1000B 1" BSPP

CVH**-1000IU 33mm ISO6149

CVH**-1250N

CVH**-1250S #20 SAE

CVH**-1250B 1¼" BSPP

CVH**-1250IU 42mm ISO6149

CVH**-1500N

CVH**-1500S #24 SAE

CVH**-1500B 1½" BSPP

CVH**-1500IU 48mm ISO6149

CVH**-2000N

CVH**-2000S #32 SAE

CVH**-2000B 2" BSPP

CVH**-2000IU

CVH**-0250*-22 ¼"

CVH**-0375*-22 3/8"

CVH**-0500*-22 ½"

CVH**-0750*-22 3/4"

CVH**-1000*-22 1"

CVH**-1250*-22 1¼"

CVH**-1500*-22 1½"

CVH**-2000*-22 2"
